OKAM K01-2210
Scalable Strength for Data-Driven Demands
OKAM K01-2210 is ideal for handling a wide range of enterprise workloads—from large-scale private cloud deployments to storage-intensive operations and business-critical databases. Expanded chassis of the server allows greater memory, storage, and connectivity, making them perfectly suited for networking, scalable backend systems, and high-throughput data environments. With a flexible mix of high-speed NVMe and large-capacity SATA/SAS storage, this platform is ready to power your infrastructure with performance and adaptability.

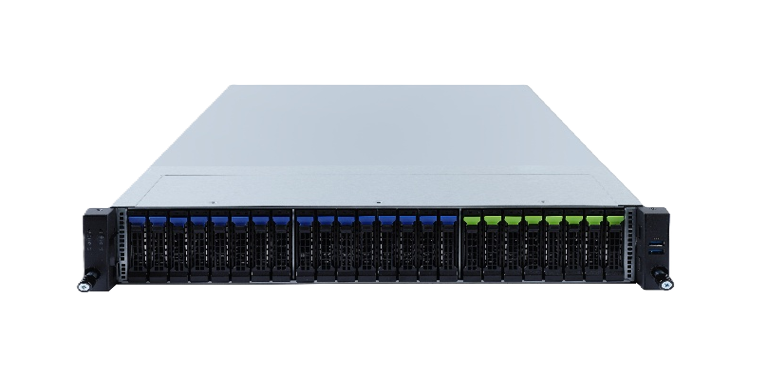

The OKAM K01-2210 is a high-performance 2U rack server engineered for demanding enterprise environments, including networking, hybrid cloud, and private cloud infrastructures. Equipped with the latest Intel® Xeon® processors and dual-processor support, it delivers exceptional computing power for complex business applications and data processing tasks. Its generous memory capacity ensures smooth multitasking and responsiveness under heavy workloads, making it a dependable choice for organizations seeking robust and efficient server solutions.
Designed for modern data centers, the OKAM K01-2210 combines processing strength with versatile storage options in a compact 2U form factor. Supporting up to 32 DDR5 DIMM slots and dual Intel Xeon CPUs, it offers the scalability needed for cloud-native applications and enterprise-grade performance. The server accommodates a mix of 8 NVMe and 16 SATA/SAS hot-swappable drives, enabling fast data access and large-scale storage management. With multiple PCIe Gen5 and OCP 3.0 slots, it supports seamless integration of networking and expansion cards, while redundant power supplies ensure continuous uptime and operational reliability.
Built to support a wide spectrum of enterprise demands, the OKAM K01-2210 excels in handling storage-heavy operations, backend systems, and business-critical databases. Its expanded chassis design allows for enhanced memory, storage, and connectivity, making it ideal for high-throughput environments and complex networking setups. The combination of high-speed NVMe and high-capacity SATA/SAS storage provides the flexibility to tailor performance to specific workload requirements. Whether deployed in a private cloud or a data-centric enterprise, the K01-2210 delivers the adaptability and strength needed for scalable infrastructure growth.
We present unique servers, aimed at solving a wide range of corporate problems.
Technical Characteristics of the Product:
2U (W438 x H87.5 x D815 mm)
2 x LGA 4677 (Socket E)
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2) - Supported NCSI |
1 x 10/100/1000 management LAN
ASPEED® AST2600 Integrated 2D Graphic Adapter
4 x FHHL PCIe Gen5 x16 slots 4 x LP PCIe Gen5 x8 slots |
2 x OCP 3.0 Gen5 x16 slots - Supports NCSI function
Speed and bandwidth: |
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
1 x TPM header with SPI interface |
- Optional TPM2.0
ASPEED® AST2600 management controller |
KERNO Management Console (AMI MegaRAC SP-X)
4 x 80x80x38mm (18,300rp)
Operating temperature: 10°C to 35°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C |
Non-operating humidity: 20%-95% (non-condensing)
1 x 2U Chassis, 2 x CPU heatsinks, 6 x Carrier clips, 1 x Mini-DP to D-Sub cable, 1 x -Section Rail kit |
Packaging Dimensions: 1077 x 679 x 300 mm
5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series |
Dual processor, TDP up to 350W
1+1 2000W 80 PLUS Platinum redundant power supplies AC Input: 100-240V
32 x DIMM slots, 8-Channel DDR5 memory RDIMM up to 96GB supported 3DS RDIMM up to 256GB supported |
Memory speed: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)
Front side: 8 x 2.5" Gen4 NVMe hot-swappable bays 16 x 2.5" SATA/SAS hot-swappable bays |
*SAS card is required for SAS devices support
Front: 2 x USB 3.2 Gen1 |
Rear: 2 x USB 3.2 Gen1, 1 x Mini-DP, 2 x RJ45, 1 x MLAN Internal: 1 x TPM header, 1 x VROC connector
Intel® SATA RAID 0/1/10/5
