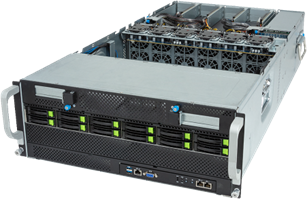

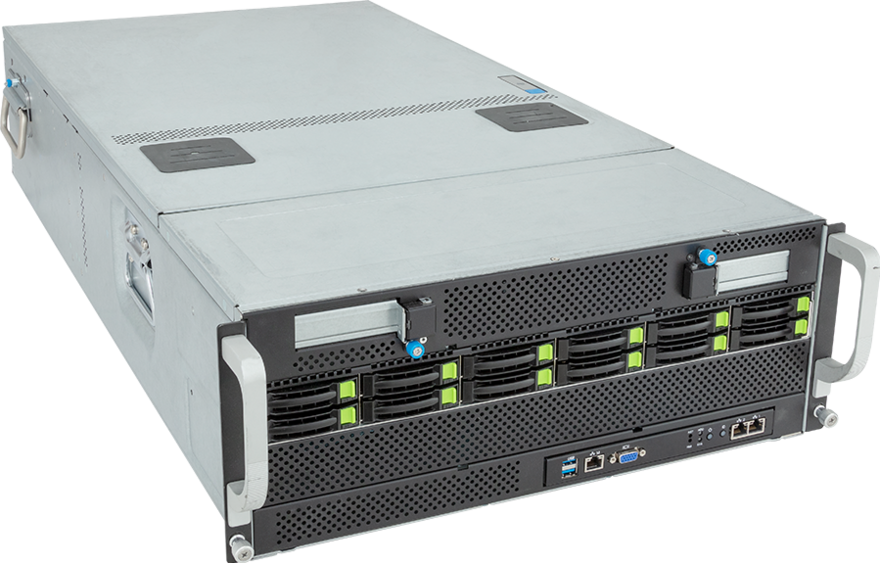

UQLEAD K03-42A0
Powerful GPU servers in 4U form factor with top of the line PCIe 5.0 and SXM GPUs
Production deployment of ML/AI applications, AI training and inferencing
Boosts AI training for mid-sized models and inference with dual AMD EPYC™ 9004/9005 Series Processors, up to 8 GPUs, and PCIe 5.0 for high data throughput and low latency
Ideal for visual computing, thanks to its GPU density and optimized performance for graphics-intensive tasks
Excels in HPC workloads with high-density GPU support, flexible scalability, and advanced cooling
We present unique servers, aimed at solving a wide range of corporate problems.
Technical Characteristics of the Product:
4U (W448 x H176 x D880 mm)
2 x LGA 6096 (Socket SP5)
2 x 1Gb/s LAN (1 x Intel® I350-AM2), Support NCSI 1 x 10/100/1000 Mbps Management LAN
Integrated in ASPEED® AST2600
- 1 x VGA port
8 x FHFL PCIe Gen5 x16, for GPUs 10 x LP PCIe Gen5 x16
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
1 x TPM header (SPI), Optional TPM2.0
ASPEED® AST2600 Baseboard Management Controller KERNO Management Console web interface
12 x 60x60x38mm (23,000rpm)
Operating: 10°C~35°C, 8%~80% (non-condensing)
Non-operating: -40°C~60°C, 20%~95% (non-condensing)
1 x 4U Chassis
2 x CPU fansinks
8 x GPU power cables (12VHPWR, 150mm)
1 x L-shape Rail kit
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 400W
3+1 3000W 80 PLUS Titanium redundant power supplies AC Input: 100-240V
The system power supply requires C19 power cord.
12-Channel DDR5 RDIMM, 48 x DIMMs [EPYC 9005] Up to 4800 MT/s (1DPC),
4000 MT/s (1R 2DPC), 3600 MT/s (2R 2DPC) [EPYC 9004] Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)
Front hot-swap:
12 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
Internal M.2:
2 x M.2 (2280/22110), PCIe Gen3 x4
[1] SAS card is required to support SAS drives
Front:
2 x USB 3.2 Gen1, 1 x VGA, 2 x RJ45, 1 x MLAN
Require RAID add-in cards
